建筑产品-壁锚,拉力带,吊架和托架CE认证EN 845-1
时间: 浏览:144

建筑产品-壁锚,拉力带,吊架和托架CE认证EN 845-1




标准介绍

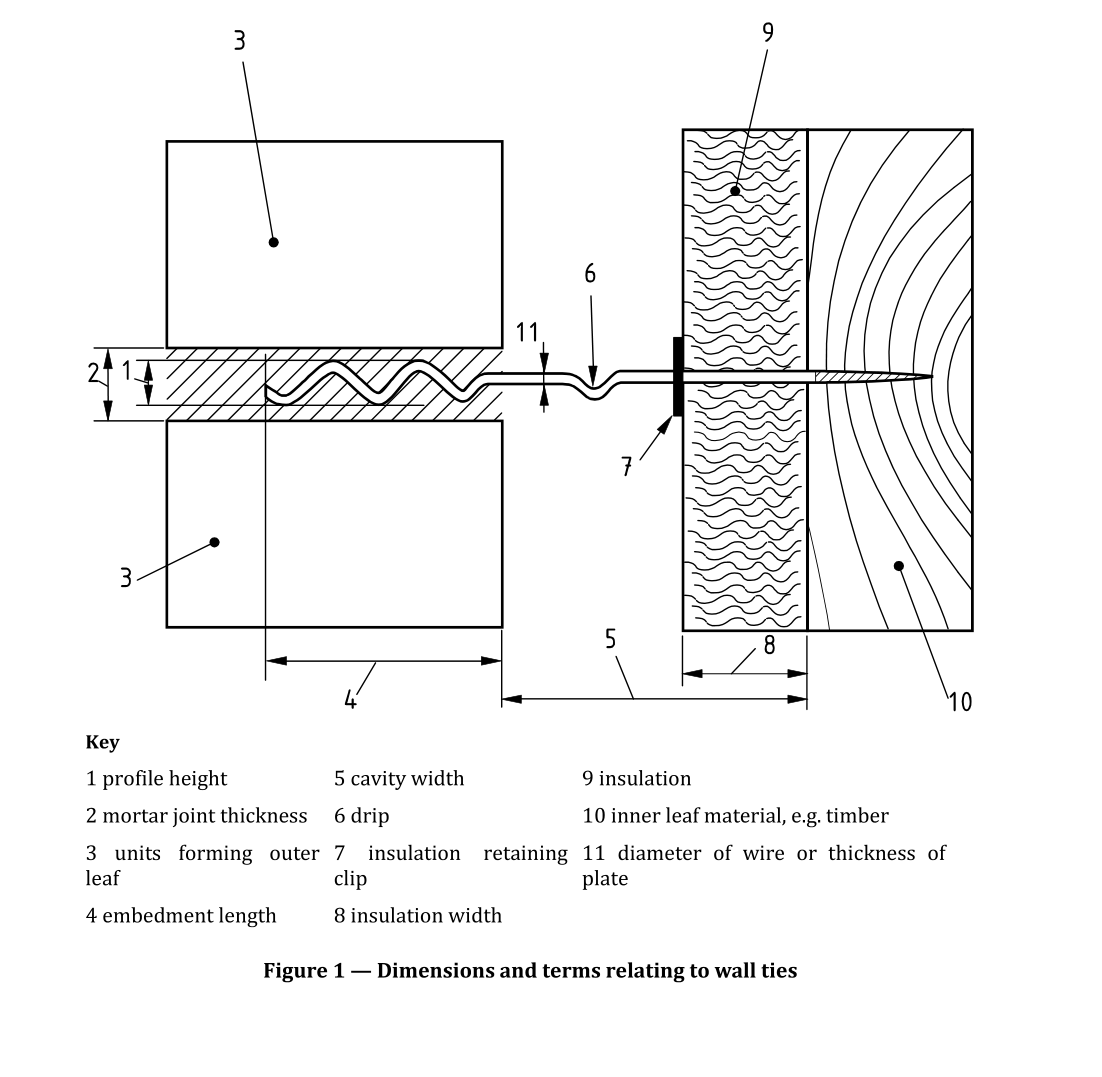

This European Standard specifies requirements for wall ties, tension straps, hangers and brackets for interconnecting masonry and for connecting masonry to other parts of works and buildings including walls, floors, beams, and columns. Where anchors or fasteners are supplied or specified as part of an ancillary component, the requirements including performance requirements apply to the complete product. This European Standard is not applicable to: a) anchors and fasteners other than as part of an ancillary component; b) shelf angles; c) wall starter plates for tying into existing walls; d) products formed from materials other than: 1) austenitic stainless steel (molybdenum chrome nickel alloys or chrome nickel alloys); 2) austenitic ferritic stainless steel; 3) ferritic stainless steel; 4) copper; 5) phosphor bronze; 6) aluminium bronze; 7) zinc-coated-steel with or without organic coating; 8) polypropylene; 9) polyamide (for expansion plugs only). NOTE The resistance to fire performance of the products included herein cannot be assessed separately from the masonry element of which they are part and is therefore not covered under the scope of this part of this European Standard.

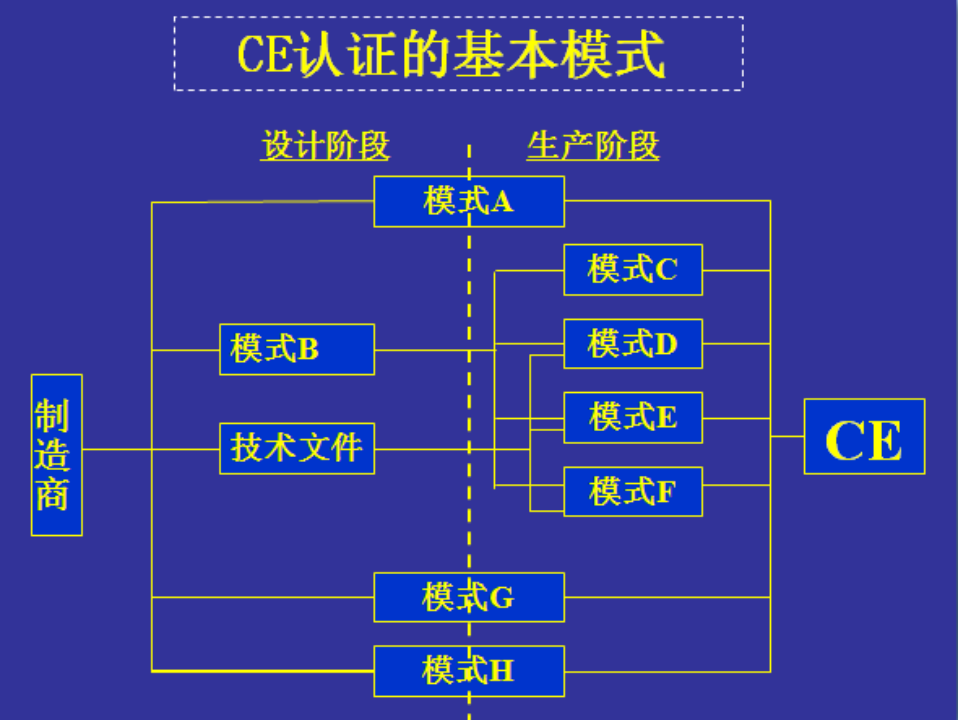

依据认证模式:









责任

方法

1+

1

2+

3

4

Notify body



Initial inspection of factory and factory production Control





Continuous Surveillance




Type Testing





Audit Testing





Manufacturer

FPC




Initial Type testing




Testing of sample take at factory in accordance with prescribed test plan

✔;





Declaration of performance






产品送样到欧洲实验室进行测试








如需要以上测试可以联系我公司:021-52968370

壁锚CE认证,拉力带CE认证,吊架CE认证 托架CE认证EN 845-1
